Creating a New Rule

1. When in the Rule List page, click the New Rule Button towards the right end of the Rule List toolbar.

The Add New Panel Rule form opens at the General tab - . Note that until you have named and saved the new rule, the other tabs in the form are inactive.

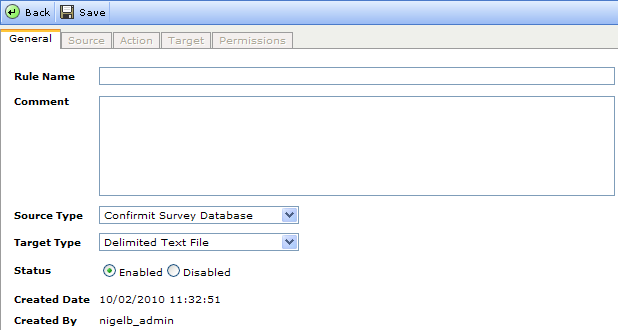

Figure 1 - The Add New Rule page

2. In the Rule Name field, type in a name for your new rule.
3. Type a comment/description into the Comment field so others can see what this rule is intended for.
4. Select the required Source and Target types.
5. Select the desired Status for the rule (go to General Overview for more information).
6. On completion, click Save.

The new rule is saved and will now appear in the Rules List. The system allocates a Rule ID to the new rule, and this ID is displayed towards the top of the form. The Source, Action, Target and Permissions tabs become active. Go to these tabs and set up the rule as required.
